Velleman K8200 3D Printer (Part 5)

Another very critical and not so easy part of building the K8200 3D printer is assembling the hot end. This is where is plastic eventually will be heated to 190 degrees C with PLA and even higher with ABS. To keep the temperature steady a tiny NTC has to be inserted in a very small whole in the heater. The wires are about as thin as a hair and you have to solder them to the thicker wire, put heat resistant tube around it and make sure none of the leads touch each other and don't touch the copper either.

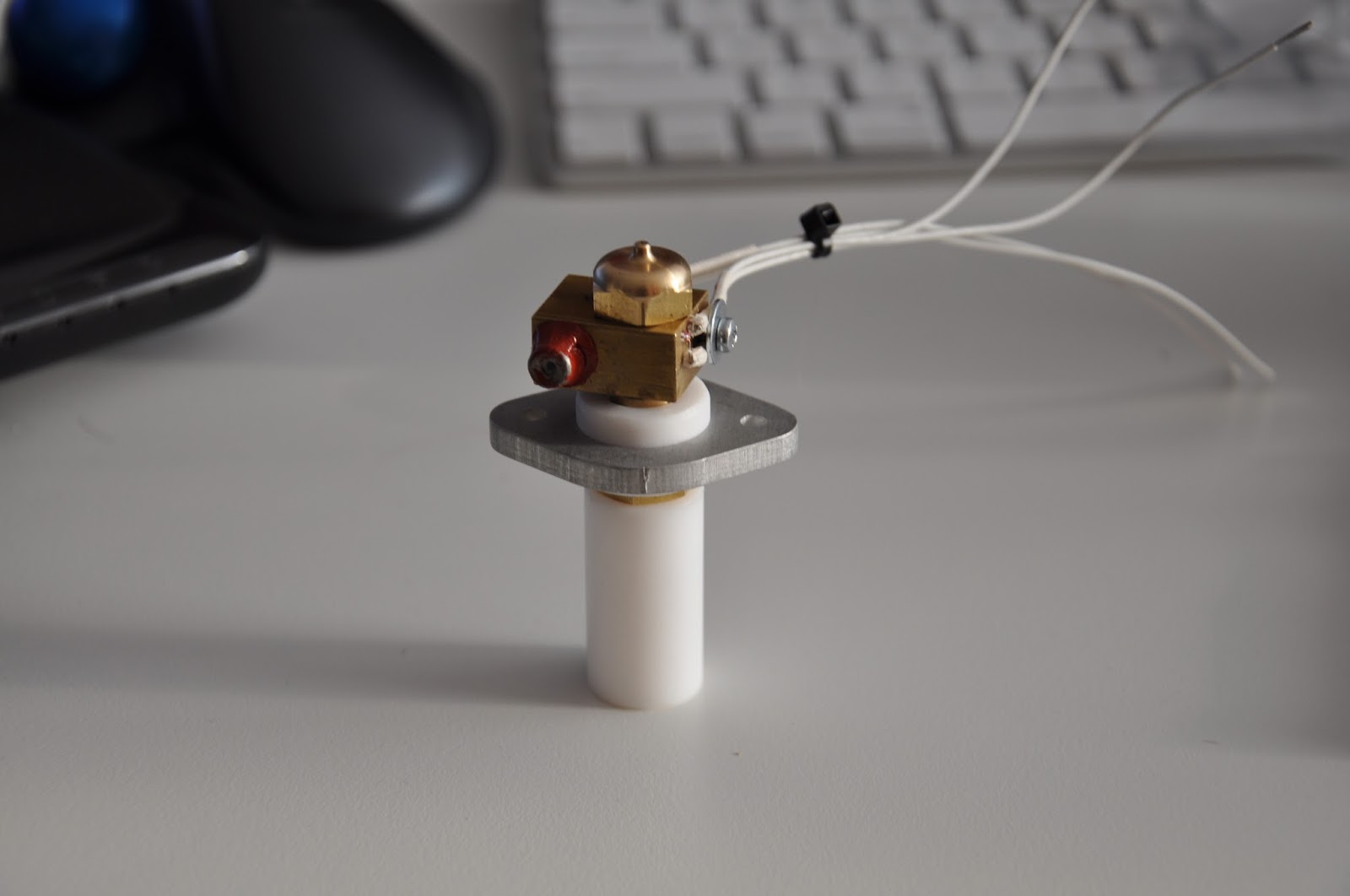

If you make a mistake here or don't insert the NTC resistor properly in the whole your temperatures will be off and your prints will fail. You need a lot of patience here :) On the right is a picture of the whole hot end. It is actually up side down. Eventually the plastic flow from the little hole on top of the copper nozzle. This is the print head and it will be about 0,25 mm from the print bed. Another remark is in the manual that you need to tighten all of this very good to prevent leakage that will be unrepairable and will cost you a new hot end. So again. Patience and check and double check everything.

The it is time to install the control board and solder all the wires. Not a very exiting job but again you need patience and some soldering skills. The manual is quite extensive about which wire goes where and shows a lot of pictures. So if you follow along carefully you can't go wrong there. When you are finished you wrap everything up neatly with some tie raps and you can do some sanity checks with your multimeter to see if there is no short circuits anywhere.

And then you are done building, but not finished by far. The first step is calibrating the stepper motor voltages. You need a multimeter and a very small screw driver for this and again patience :) Then you test the switches with the multimeter and measure the NTC's. And then the famous smoke test. Hook up the power, watch the leds and see if nothing smokes. When that is done it is time for some actual testing from the software and seeing if all the motors run and if the calibration works. So far so good. I'm happy to say that everything was working for me the first time. But the story isn't over yet :) The hardest part turned out still to come. More on that soon.

Velleman K8200 3D Printer (Part 4)

Next part to build was the extruder. This is the mechanical part that feeds the filament (plastic material) in to the extruder. It holds one motor and some gears. The tricky part here is to put a spring in that has quite some tension to it. And this also holds the last motor. It is very essential that everything runs smoothly again. The manual also talks about some bolts that need to be 'tight' and some that cannot me 'too tight'.

All very relative right. I thought as longs as it runs it must be OK. Then you have to attach it to the frame. I found out that this is not easy. You have to put some rings in between and they kept falling our every time I tried to screw it on. I think I did this 10 times over. But well. It is on now. This actually concludes most of the mechanical moving parts. Everything still runs fine so I'm quite happy so far.

Then you have to assemble the heated print bed. There are two tricky parts here. First of all you have to solder on a NTC on the backside. Not easy since it is a SMD component and it is very small. Luckily I did this before, but you need some skills and a good soldering iron for this. It is essential that you solder it as flat as possible or you will get into trouble later. Also the screws are actually to large. They stick out of the bed. Try to avoid that since the print head will only be 0.25 from the bed and the screws can be higher. You don't want to hit them since the software doesn't know the screws are there.

Then you finally get to install the mysterious part that you build the first. And suddenly you understand its purpose. It only holds the spool of filament later on. So the detailed description given about the measurements here make no sense at all since all the spools I've see so way are way smaller that this. But a well.. It fits :) I did have one spool laying around and of course it fitted easily. OK so far for the mechanical part. After this it will be electronics and lots of wiring.
